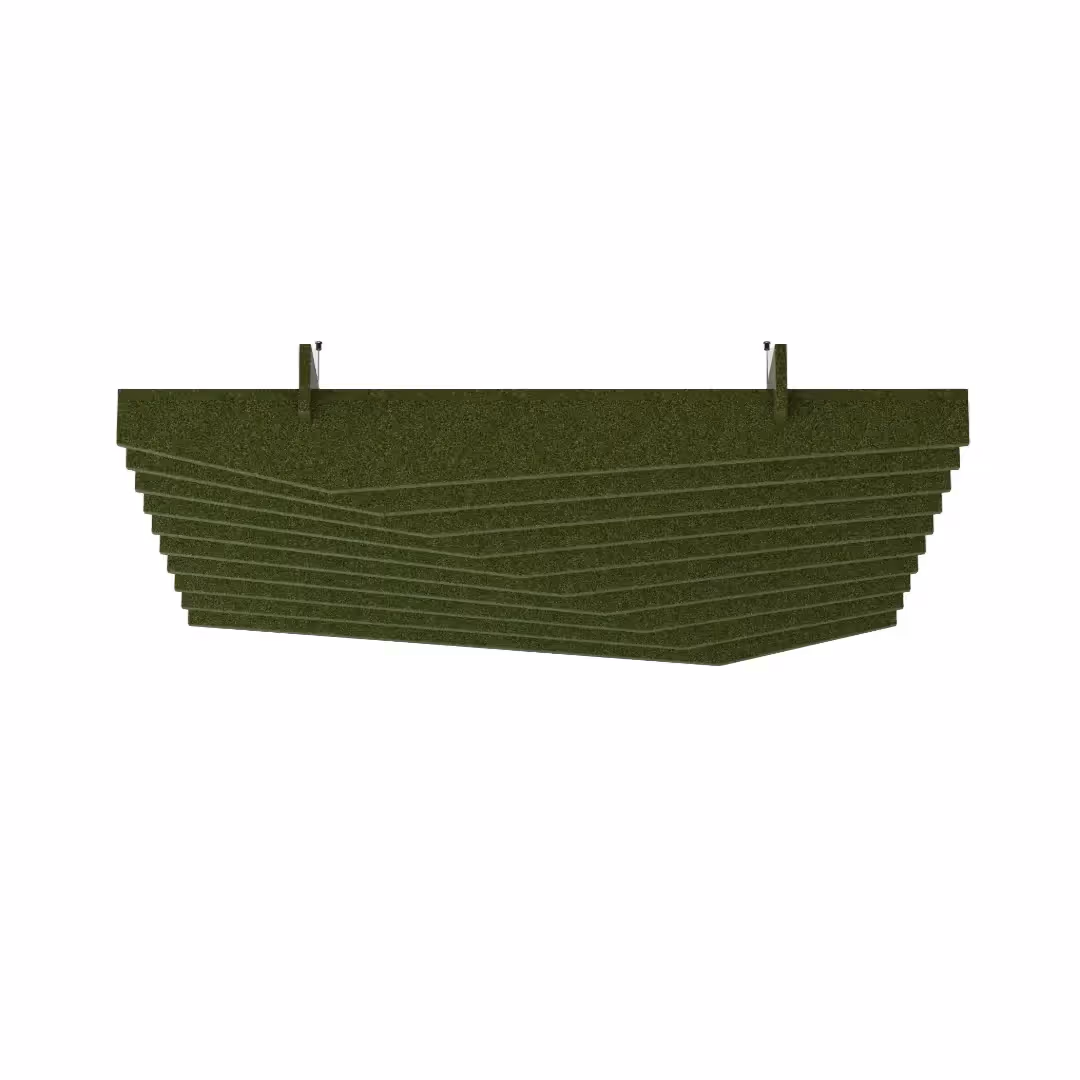

Edge acoustic ceiling element
Impact Acoustic
From
€
55
(3.5 stars) • 10 reviews
With its simple, geometric shape, the Edge ceiling element is not only acoustically excellent: it is also a real eye-catcher for long corridors, as a focal point above a boardroom table or in an open space office, for example.
Acoustic ceiling elements, also known as baffles, offer an optimal solution for open ceilings, where easy access to building installations or the thermoactive air exchange of cooling ceilings must be ensured.
Edge is easy to install using a tool-free plug-in system. The reflection of the elements creates coherent shapes that give the space a lot of dynamism.
Acoustic ceiling elements, also known as baffles, offer an optimal solution for open ceilings, where easy access to building installations or the thermoactive air exchange of cooling ceilings must be ensured.
Edge is easy to install using a tool-free plug-in system. The reflection of the elements creates coherent shapes that give the space a lot of dynamism.
Dimensions
Total length: 1800mm
Total width 1800mm
Total height 300 mm
Bottom baffle height 225 mm
Total width 1800mm
Total height 300 mm
Bottom baffle height 225 mm
Composition
100% PET (recycled material)
Thickness
24 mm
Finishing material
HAT
Weight
14.4 kg (± 10%) (without suspension)
Available colors
32 colors (see AchiSonic color in the images)
Sound absorption
ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room
ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption
ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements
based on laboratory measurements
ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method
ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests
Maintenance
For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.
If soiled by dust or fluff, use a feather duster or a regular feather duster
vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.
Recyclability
(60% certified post-consumer content)
Fire reduction class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels
Declare label, Cradle to Cradle, UL Environmental Product Declaration,
Member of the U.S. Green Building Council, Ecobau 1st Priority, Climmate-KIC,
VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled
Contents
