Helios
A light, flexible partition with powerful acoustic performance.

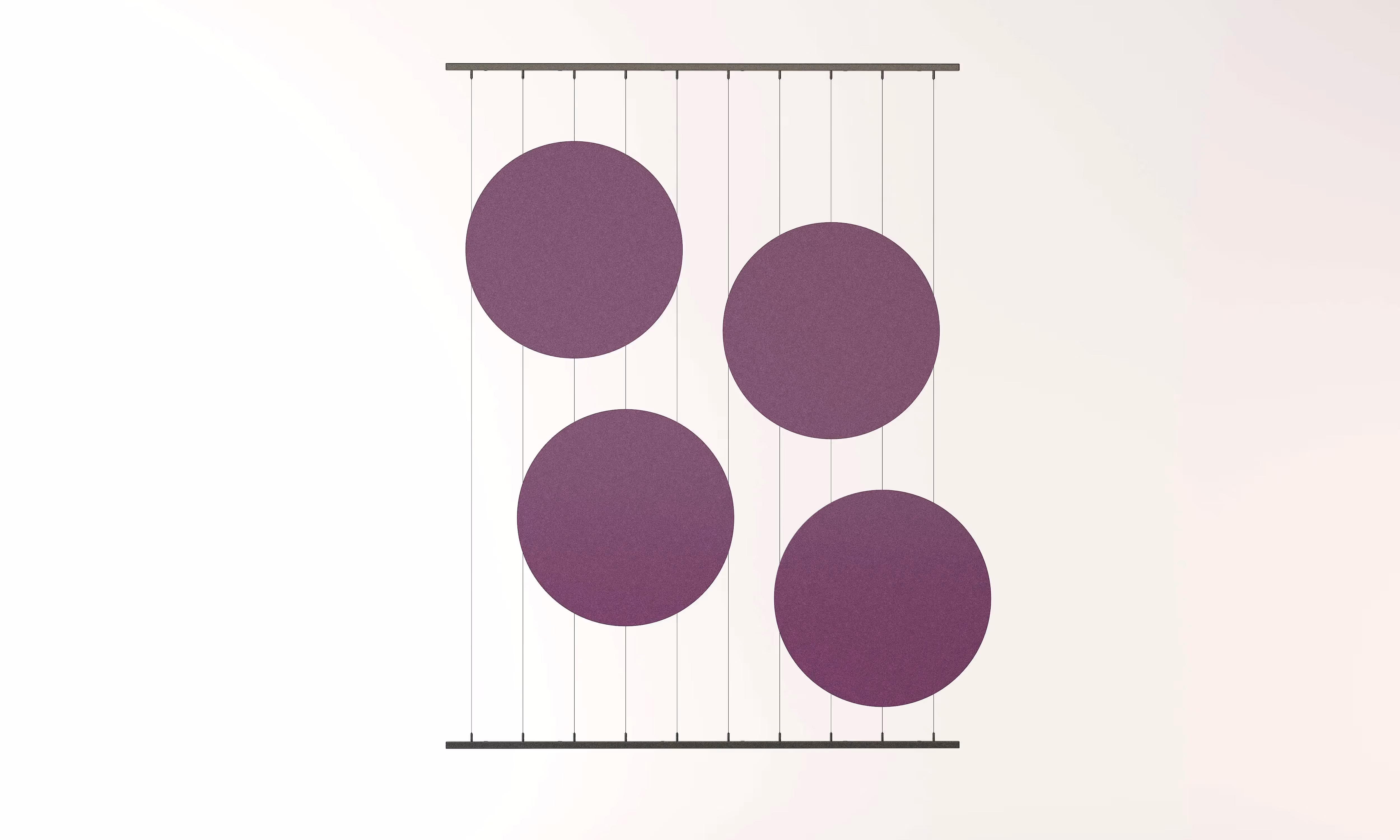

The Helios Tensed Division is a sculptural acoustic room divider designed for modern spaces that crave openness without sacrificing acoustic comfort. Using a system of tensioned PET felt panels, held in place by discrete cables and steel framing, Helios offers a refined, semi-transparent spatial separation, without the heaviness of walls or fixed partitions.
Ideal for open-plan offices, lounges, lobbies, or creative studios, Helios defines zones while softening sound. Its large circular cut-outs and architectural proportions (up to 3600 mm high) create visual interest while maintaining light flow and spatial connection.
Crafted from ARCHISONIC® Felt, made with 60% post-consumer recycled PET, the panels are available in 36 color options, with high acoustic performance. Offering up to 62 Sabins of absorption in real-world conditions.
The system includes pre-engineered mounting hardware and a steel frame in RAL 9005 black, with a clean, minimalist profile that complements any interior palette. With a 10-year warranty, high durability, and sustainable material credentials, Helios Tensed Division is as reliable as it is elegant.
• Total Width: 1800 mm (70.9”)
• Total Height: 2400–3600 mm (94.5”–142”) – recommended range
• Thickness: 30 mm (1.18”)
• Edge Width: 90 mm (3.5”)
• Spacing Width: 180 mm (7.1”)
• Circle Diameter: 760 mm (29.9”)
• Panel material: 100% PET (60% certified post-consumer content)
•Frame: Steel profiles and wires (RAL 9005 black)
Panel tested: 12mm Helios, 1800mm × 3500mm
• ISO Aobj (Equivalent Sound Absorption Area per Object, in m²):
- 125 Hz: 1.5
- 250 Hz: 2.7
- 500 Hz: 3.4
- 1000 Hz: 4.7
- 2000 Hz: 5.6
- 4000 Hz: 5.8
• ASTM Sabins (ft² per object):
- 125 Hz: 16.15
- 250 Hz: 29.06
- 500 Hz: 36.60
- 1000 Hz: 50.59
- 2000 Hz: 60.28
- 4000 Hz: 62.43
• Acoustic Ratings (based on panel types and sizes):
- 24mm Plain Panel (1800 x 2400 mm): αw = 0.55 (H), NRC = 0.55, SAA = 0.57
- 24mm Perforated Panel (1800 x 2400 mm): αw = 0.45 (H), NRC = 0.45, SAA = 0.47
- 12mm Plain Panel (1200 x 2800 mm): αw = 0.40 (H), NRC = 0.40, SAA = 0.39
- 12mm Perforated Panel (1200 x 2800 mm): αw = 0.35 (H), NRC = 0.35, SAA = 0.32
• Testing standards used:
- ISO 354.
- ISO 11654.
- ISO 20189.
- ASTM C423-17.
- ASTM E795-16.
• Daily cleaning: 75% alcohol solution (e.g., Pantasept).
• Dust removal: Feather duster or vacuum cleaner.
• Heavy dirt: Hydrogen peroxide treatment.
• VOC Emission:
- 28 Days French Regulation: A+.
- BREEAM® (International, UK, NL, SE, NOR): Exemplary.
- CDPH Standard V1.2: Pass.
• Certifications:
- Declare label, Cradle to Cradle, UL Environmental Product Declaration.
- Member of US Green Building Council, Ecobau 1st Priority, Climate-KIC.
- VOC emissions compliant with LEED EQ credit (low-emitting products).
- SCS Recycled Content.
