Illum Acoustic Room Divider

Impact Acoustic
Vanaf
55
(3.5 stars) • 10 reviews

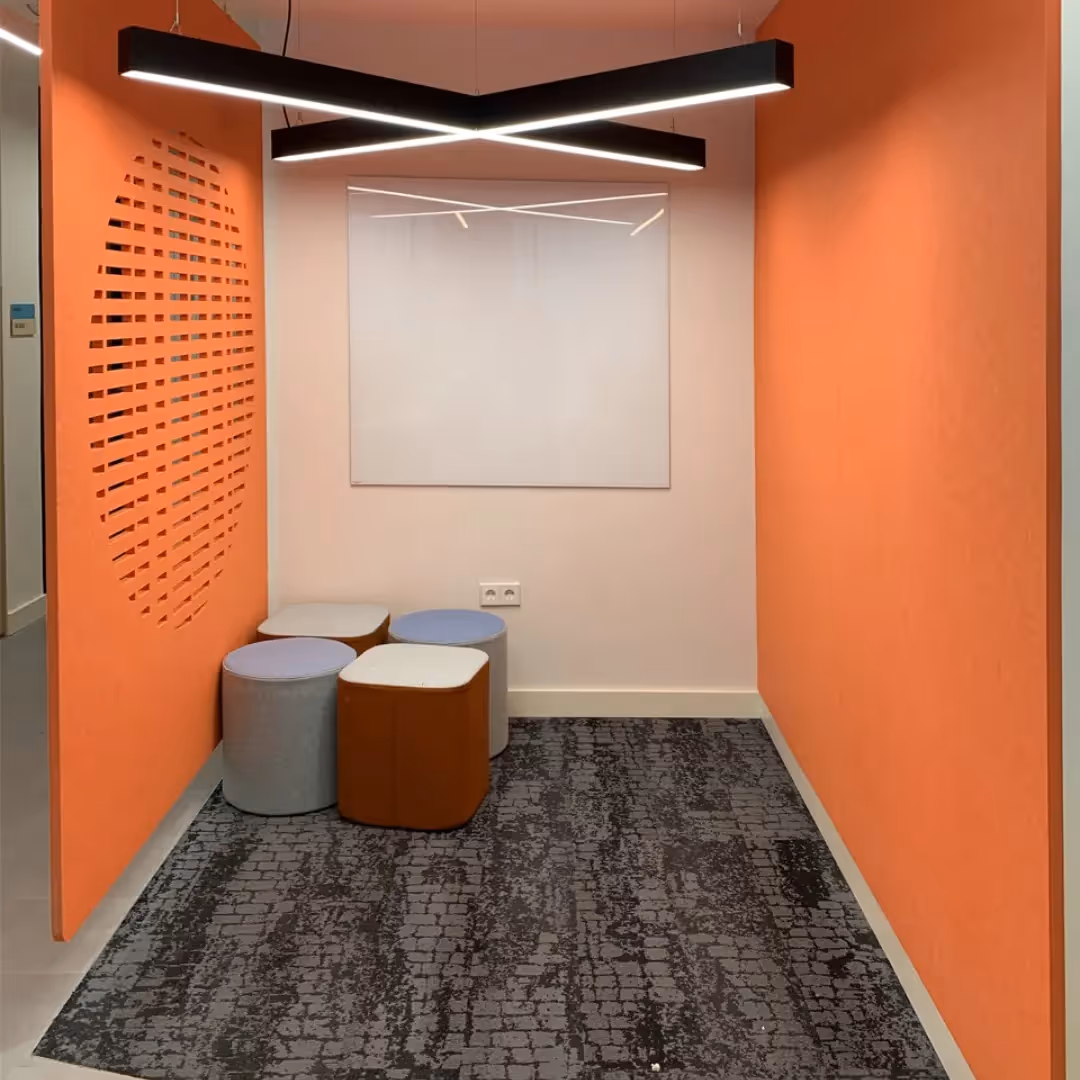

Inspired by today's Asian design language, the Illum was designed. The idea is to hang several acoustic room dividers one after the other to create cutting patterns and shadow effects.

Due to the low perforation content of only 8%, the acoustic elements are highly efficient in sound absorption and yet transparent in the field of view.
Request a quote
Variant
Buy now
Free shipping over $50
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Dimensions

High:

Width: 1200 mm

Height: 2800 mm

Thickness: 12 mm

Large:

Width: 1800 mm

Height: 2400 mm

Thickness: 24 mm

Small:

Width: 900 mm

Height: 2400 mm

Thickness: 24 mm

Composition

100% PET (gerecycled materiaal)

Thickness
Finishing material
HAT
Weight
PET Panel 24mm 4kg/m2 PET Panel 12mm 2.4 kg/m2
Colours available
32 colors (see AchiSonic color in the images)
Sound absorption

ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room

ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption

ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements

based on laboratory measurements

ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method

ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests

Maintenance

For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.

If contaminated by dust or fluff, use a feather duster or a regular feather duster.

In case of heavy contamination, treat the material with hydrogen peroxide.

Recyclability
(60% certified post-consumer content)
Fire resistance class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels

Declare label, Cradle to Cradle, UL Environmental Product Declaration,

Member of the U.S. Green Building Council, Ecobau 1st Priority, Climmate-KIC,

VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled
