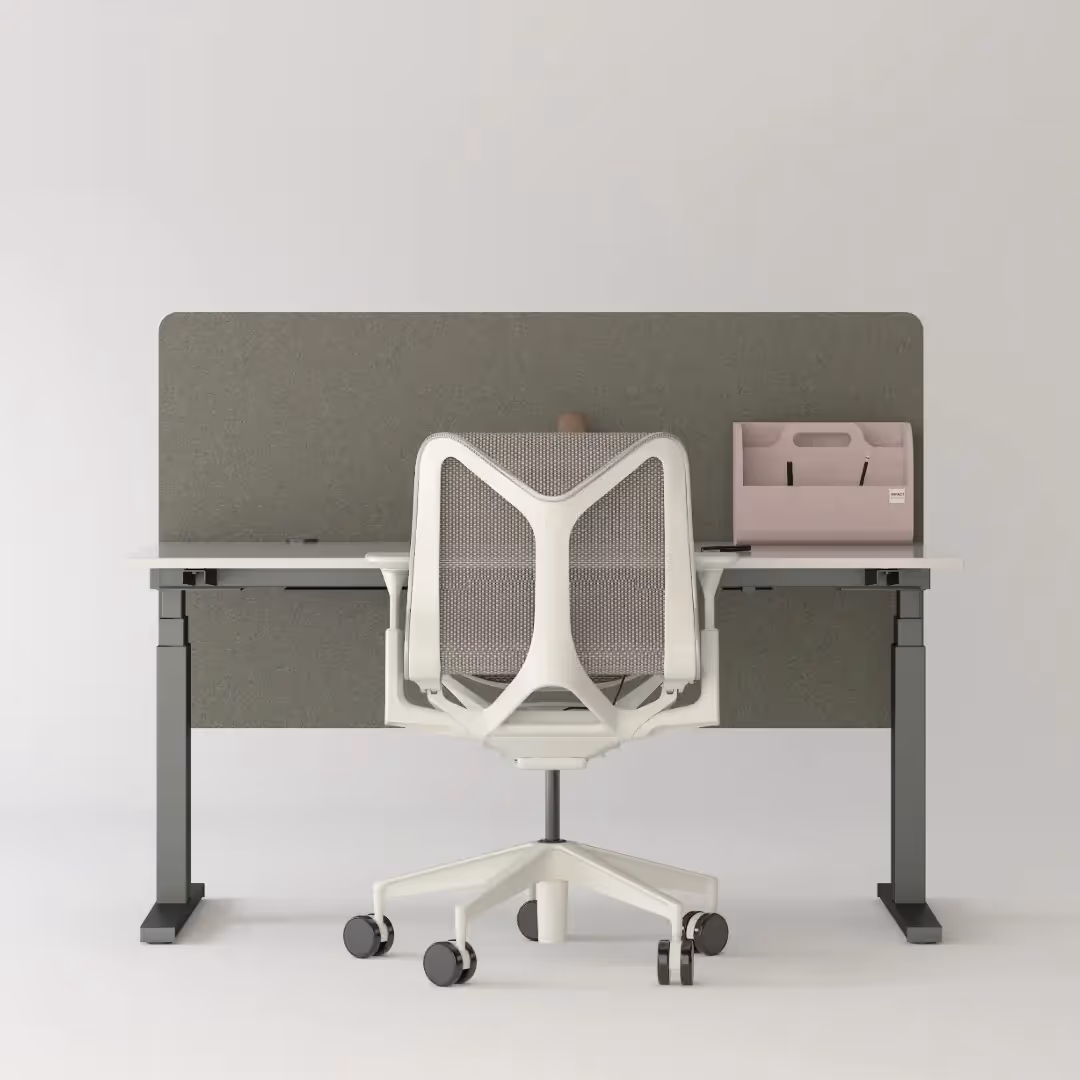

Infra acoustic desk panel
Impact Acoustic
From
€
55
(3.5 stars) • 10 reviews
The Infra acoustic partition follows the trend of dematerialization: we removed all unnecessary parts from the acoustic workspace wall and focused on the essentials: visual and acoustic shielding.
The Infra is particularly suitable for “stand-up” workplaces to prevent visibility under the table from the other side.

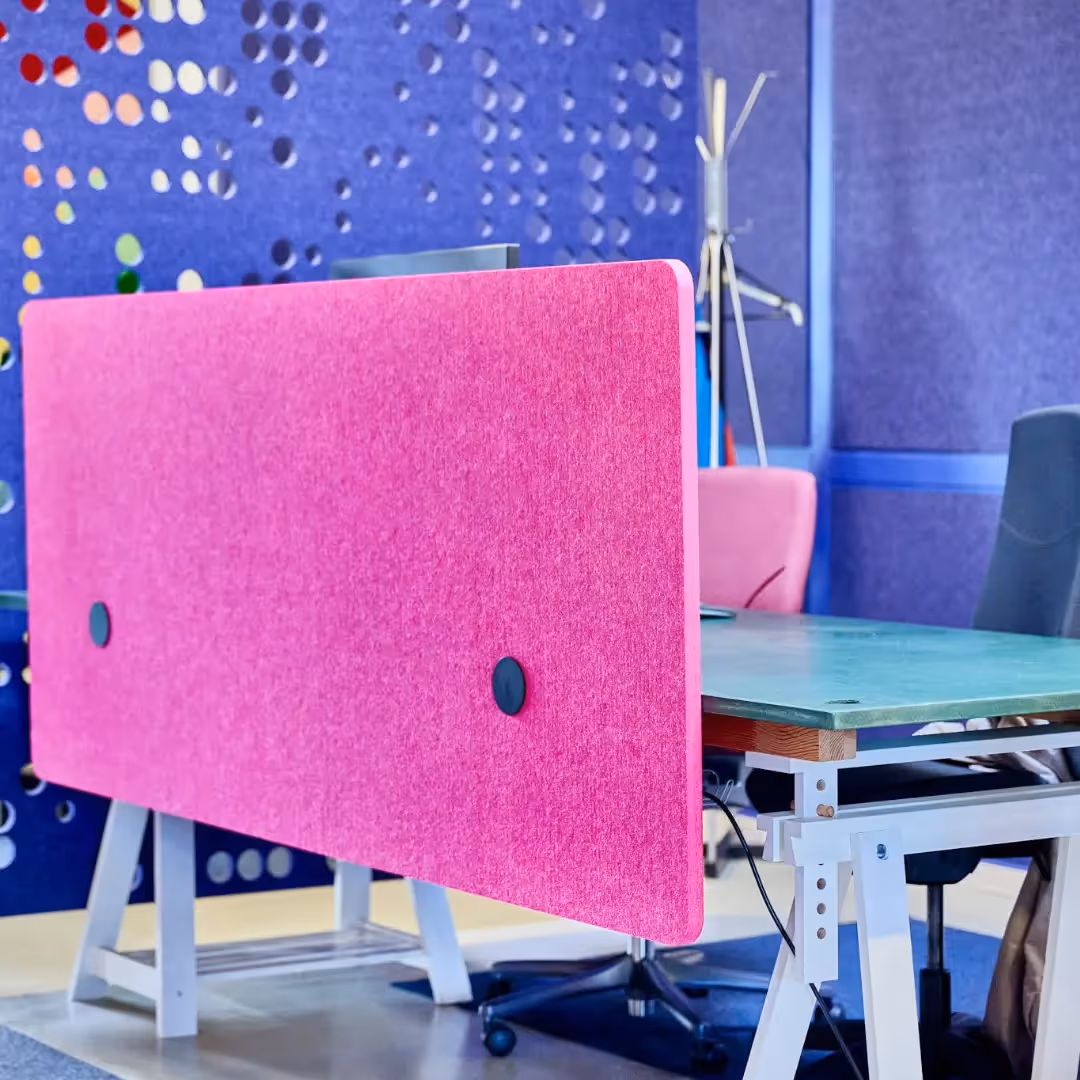

If desired, the screens can also be supplied with a perforation to allow both privacy and communication between table neighbours.
The Infra is particularly suitable for “stand-up” workplaces to prevent visibility under the table from the other side.
If desired, the screens can also be supplied with a perforation to allow both privacy and communication between table neighbours.
Dimensions
Width: 780/1180/1400/1600/1800 mm
Height: 770/870 mm
Cartridges are available in eight sizes
Height: 770/870 mm
Cartridges are available in eight sizes
Composition
100% PET (recycled material) Adapter Steel
Thickness
24 mm
Finishing material
HAT
Weight
PET Panel: 4kg/m2 (± 10%)
Adapter: 0.32 g
Available colors
PET panel: 32 colors (see AchiSonic color in the images)
Adapter: black powder coated
Sound absorption
ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room
ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption
ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements
based on laboratory measurements
ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method
ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests
Maintenance
For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.
If soiled by dust or fluff, use a feather duster or a regular feather duster
vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.
Recyclability
(60% certified post-consumer content)
Fire reduction class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels
