Rays Acoustic Room Divider
Impact Acoustic
From
€
55
(3.5 stars) • 10 reviews

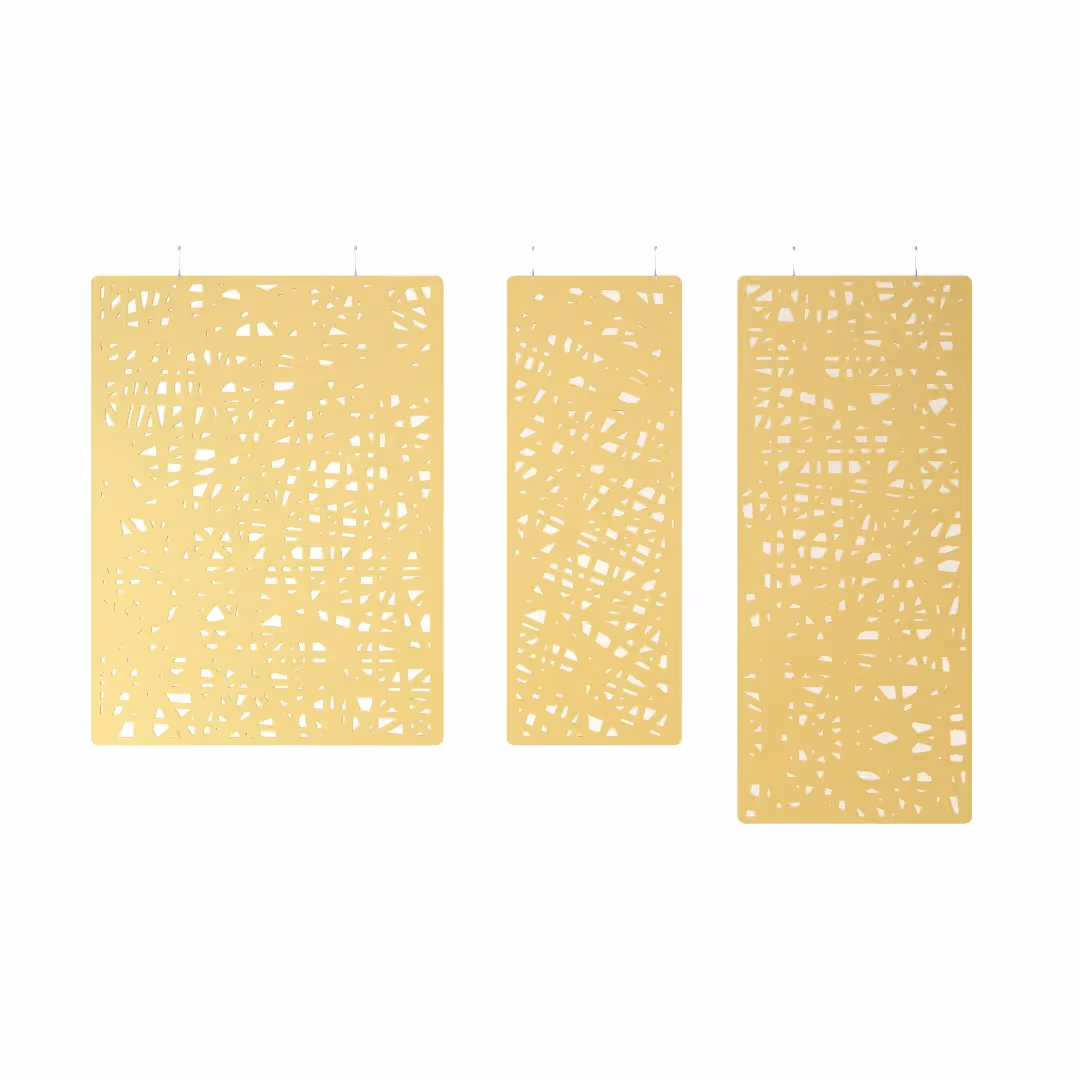

The harmonious distribution of the irregular perforations of the Rays acoustic room divider is based on the Delaunay triangulation.
Points are interlinked with triangles so that there are no other points within the circle where the three triangle points lie (circumference of the triangle). This principle is found everywhere in nature and has a calming effect on people because it is governed by a clear rule.
Points are interlinked with triangles so that there are no other points within the circle where the three triangle points lie (circumference of the triangle). This principle is found everywhere in nature and has a calming effect on people because it is governed by a clear rule.
Dimensions
High:
Width: 1200 mm
Height: 2800 mm
Thickness: 12 mm
Large:
Width: 1800 mm
Height: 2400 mm
Thickness: 24 mm
Small:
Width: 900 mm
Height: 2400 mm
Thickness: 24 mm
Width: 1200 mm
Height: 2800 mm
Thickness: 12 mm
Large:
Width: 1800 mm
Height: 2400 mm
Thickness: 24 mm
Small:
Width: 900 mm
Height: 2400 mm
Thickness: 24 mm
Composition
100% PET (recycled material)
Thickness
Finishing material
HAT
Weight
PET Panel 24mm 4kg/m2
PET Panel 12mm 2.4 kg/m2
Available colors
32 colors (see AchiSonic color in the images)
Sound absorption
ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room
ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption
ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements
based on laboratory measurements
ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method
ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests
Maintenance
For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.
If soiled by dust or fluff, use a feather duster or a regular feather duster
vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.
Recyclability
(60% certified post-consumer content)
Fire reduction class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels
Declare label, Cradle to Cradle, UL Environmental Product Declaration,
Member of the U.S. Green Building Council, Ecobau 1st Priority, Climmate-KIC,
VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled
Contents
