Vertigo acoustic wall panel

Impact Acoustic
Vanaf
55
(3.5 stars) • 10 reviews
Vertigo is a highly effective, flexible and cost-effective acoustic wall solution. The vertical v-shaped lines fit very well with the existing or new space. It is designed to cover the surface down to the last millimeter and can be cut to size on site.

💡 Tip: We can adjust the spacing between the v-cuts to suit your design.
Request a quote
Variant
Buy now
Free shipping over $50
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Dimensions

Thickness: 12 mm

Max. Dimensions: 1200x2800 mm

Thickness: 24 mm

Max. Dimensions: 1800x2400mm

Composition

100% PET (recycled material)

Thickness
Finishing material
HAT
Weight
Colours available

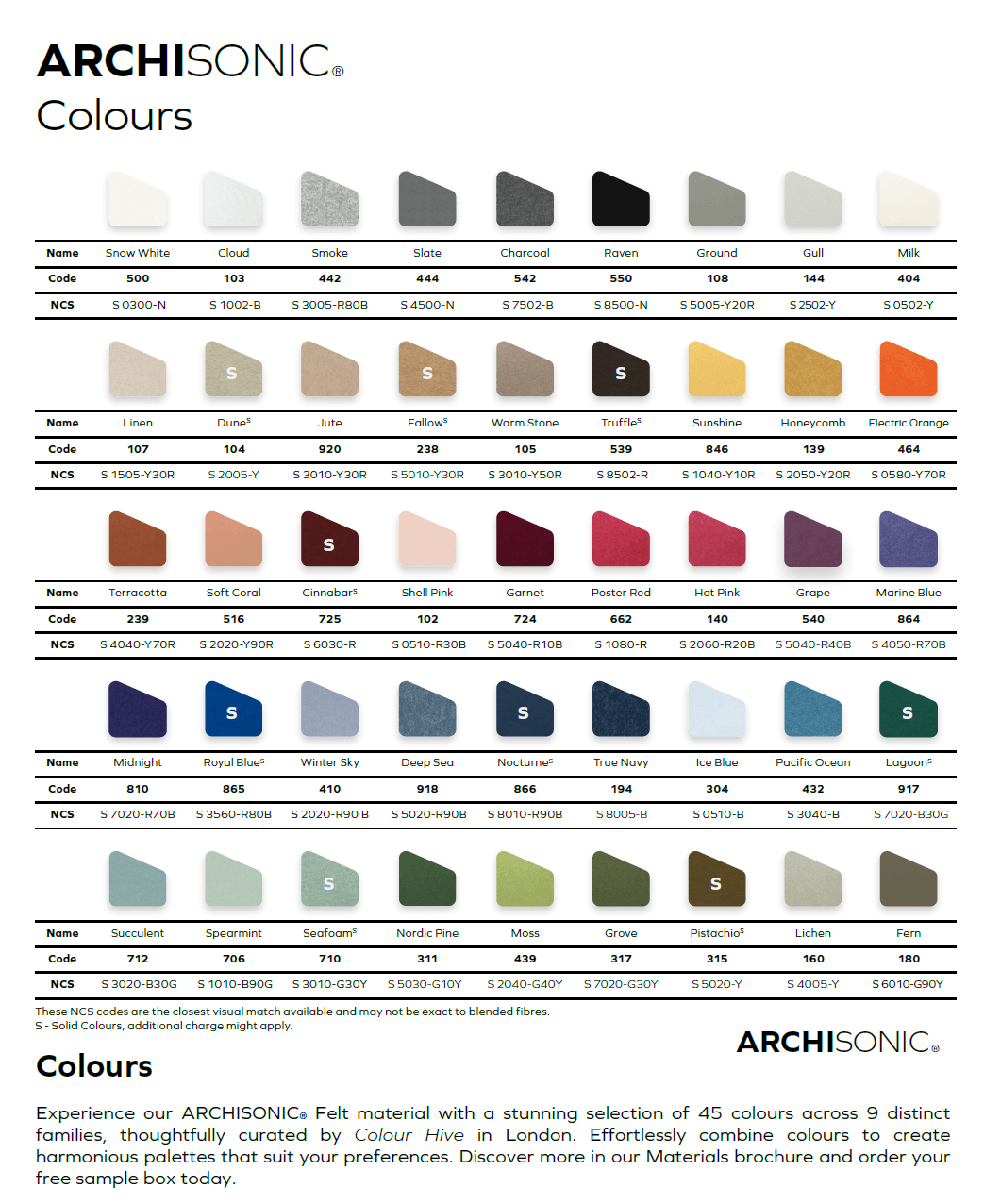

32 colors (see AchiSonic color in the images)
Sound absorption

ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room

ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption

ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements

based on laboratory measurements

ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method

ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests

Maintenance

For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.

If soiled by dust or fluff, use a feather duster or a regular feather duster

vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.

Recyclability
(60% certified post-consumer content)
Fire resistance class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels

Declare label, Cradle to Cradle, UL Environmental Product Declaration,

Member of US Green Building Council, Ecobau 1st Priority, Climmate-KIC,

VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled

Content
