Wave Ceiling Acoustic Ceiling Panel
Impact Acoustic
From
€
55
(3.5 stars) • 10 reviews

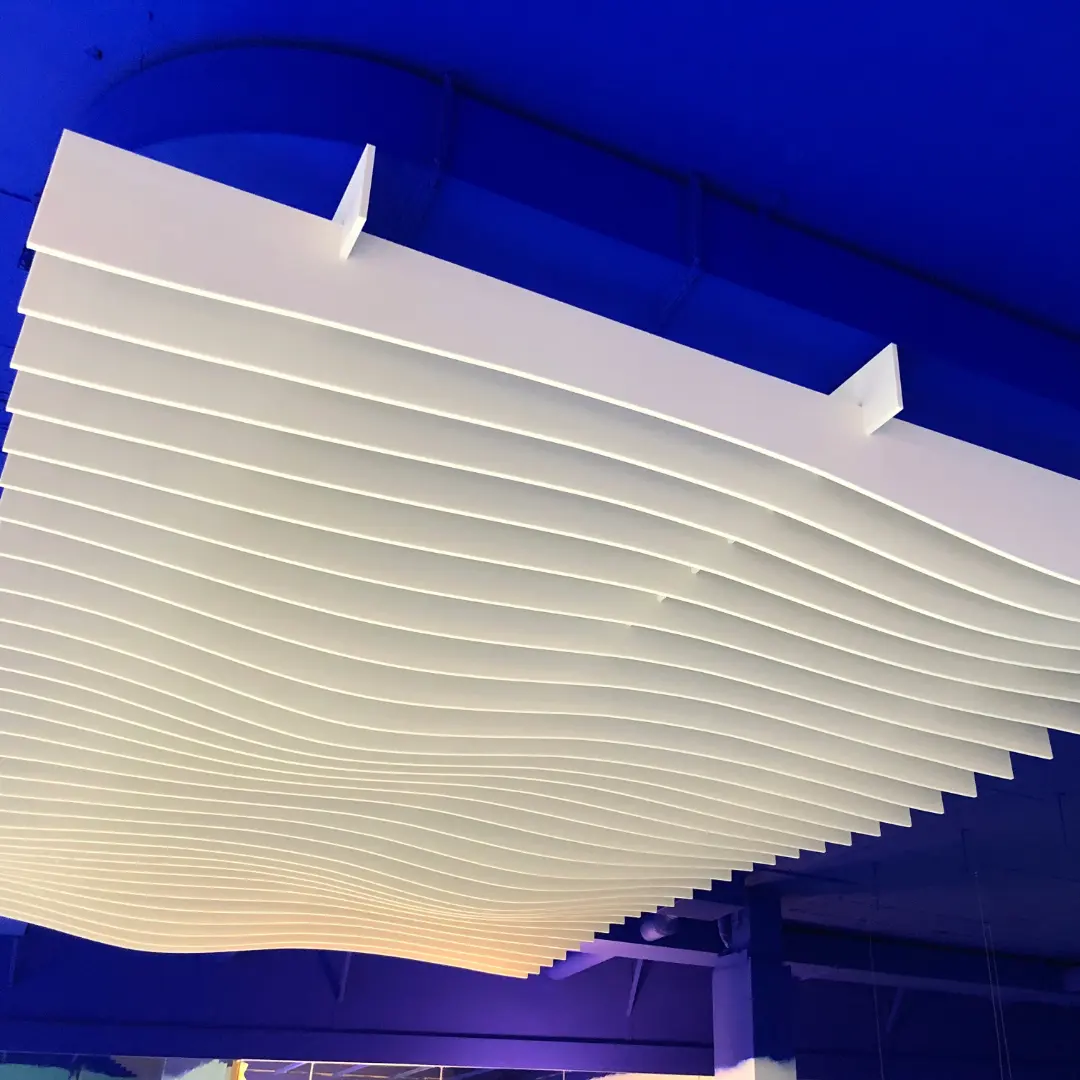

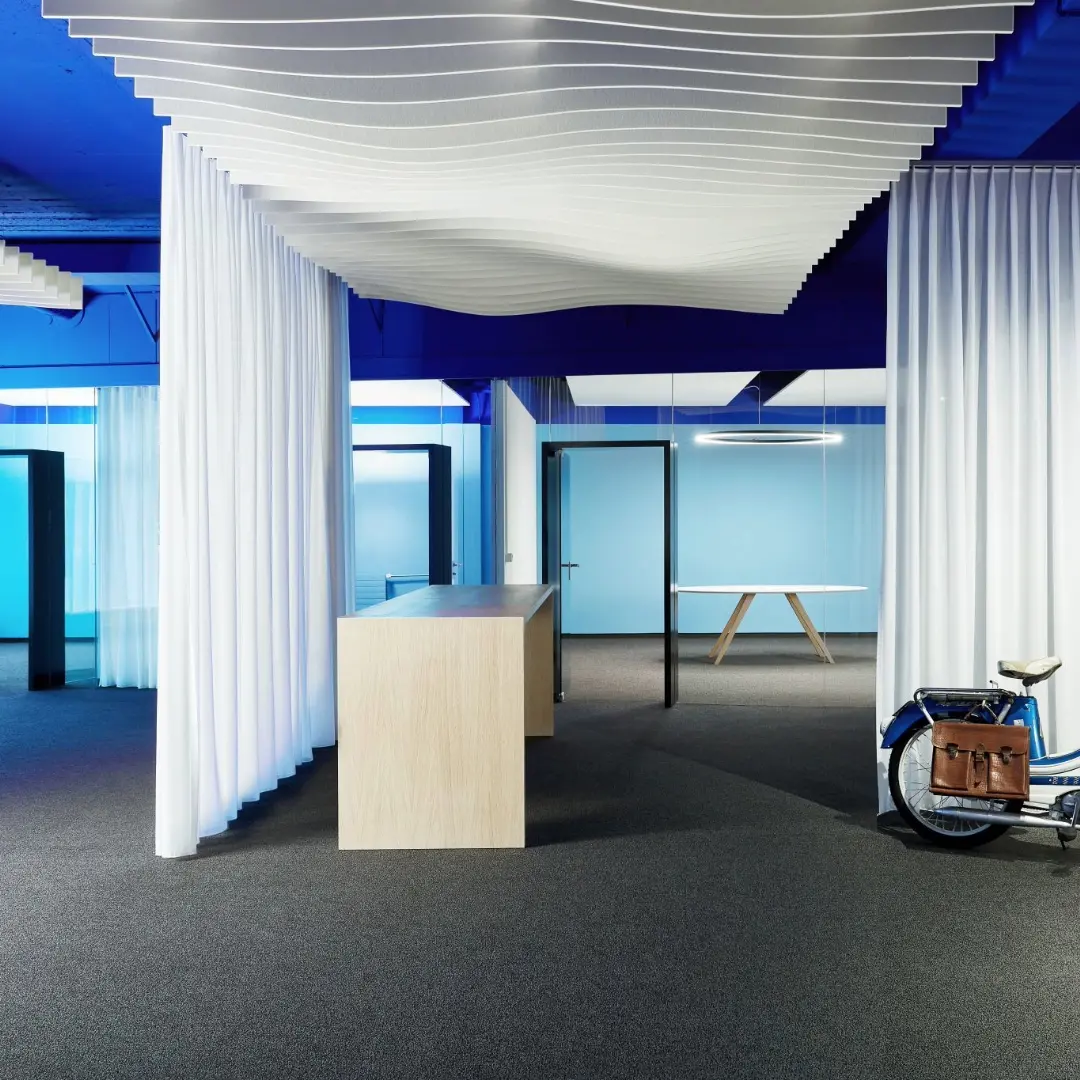

Mirroring the elements creates a repetitive, silent Wave ceiling based on a complex algorithm. The design of the ceiling element is based on the laws of nature and acts as a harmonious element in long corridors, as a central element above a conference table or in an open office.
The reflection of the ceiling elements literally creates coherent shapes that give the room a lot of dynamism.
The reflection of the ceiling elements literally creates coherent shapes that give the room a lot of dynamism.
Dimensions
Total length: on request (customized)
Module length: 1600-2400
Total width: on request (customization)
Baffle height: 100-300 mm
Module length: 1600-2400
Total width: on request (customization)
Baffle height: 100-300 mm
Composition
100% PET (recycled material)
Thickness
24 mm
Finishing material
HAT
Weight
Baffles: 4kg/m2 (± 10%)
Strut profile: 0.62kg/m
Available colors
32 colors (see AchiSonic color in the images)
Sound absorption
ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room
ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption
ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements
based on laboratory measurements
ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method
ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests
Maintenance
For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.
If soiled by dust or fluff, use a feather duster or a regular feather duster
vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.
Recyclability
(60% certified post-consumer content)
Fire reduction class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels
Declare label, Cradle to Cradle, UL Environmental Product Declaration,
Member of the U.S. Green Building Council, Ecobau 1st Priority, Climmate-KIC,
VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled
Contents
