Wave Morph Bespoke acoustic ceiling panels
Impact Acoustic
From
€
55
(3.5 stars) • 10 reviews

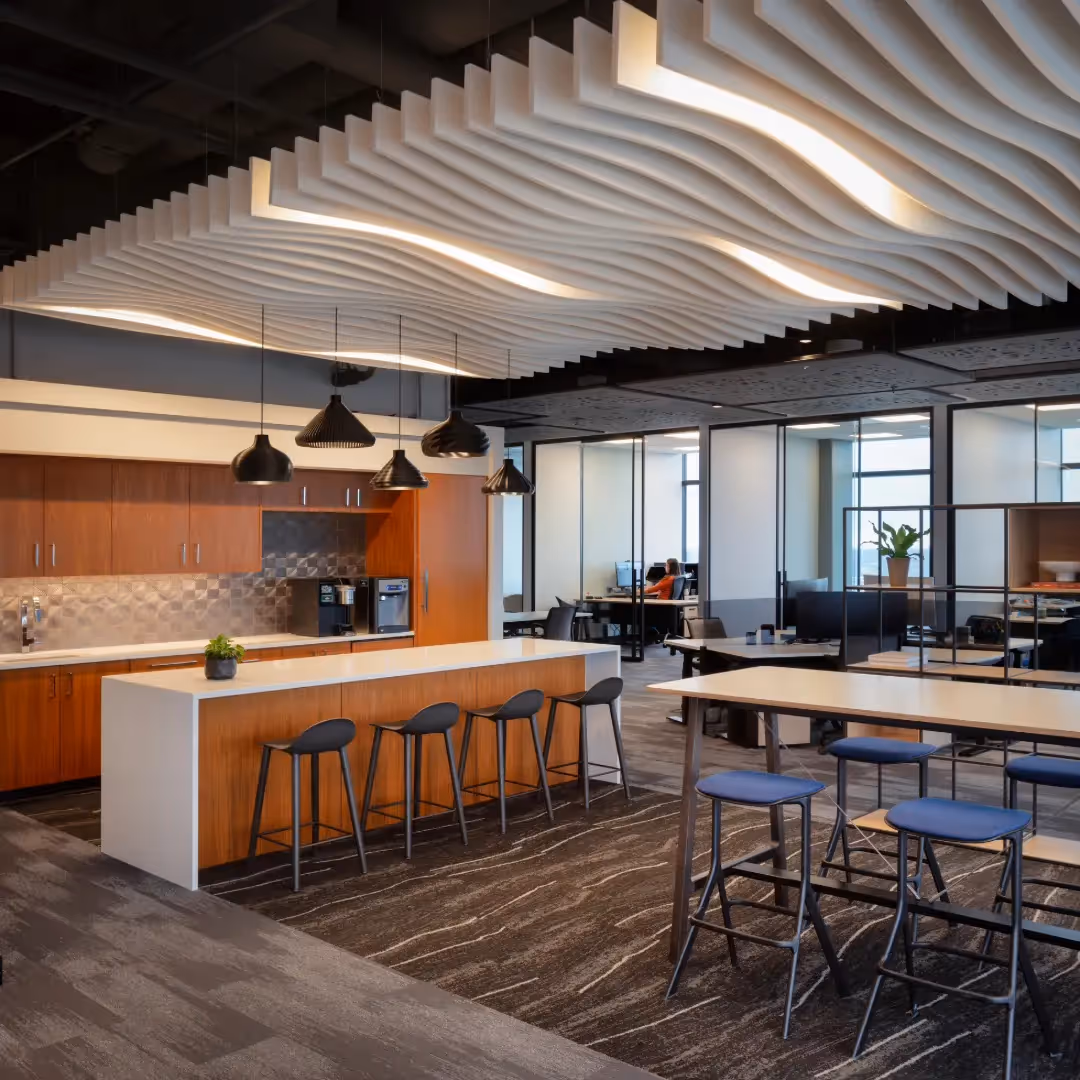

The Wave Morph Bespoke is a customized baffle system based on an algorithm. Inspired by the laws of nature, the baffle system is adaptable to any space and easy to install. The ceiling element is ideal for public lobbies, long corridors, meeting rooms and open office spaces.
Baffles are an optimal solution for open ceilings, where easy access to building installations or thermoactive air exchange from cooling ceilings must be guaranteed. Our standard products impress with their simple installation with a tool-free plug-in system.
The reflection of the elements creates coherent shapes that give the space a lot of dynamism.
Baffles are an optimal solution for open ceilings, where easy access to building installations or thermoactive air exchange from cooling ceilings must be guaranteed. Our standard products impress with their simple installation with a tool-free plug-in system.
The reflection of the elements creates coherent shapes that give the space a lot of dynamism.
Dimensions
Total length: on request (customized)
Module length: 1600-2400
Total width: on request (customization)
Baffle height: 100-300 mm
Module length: 1600-2400
Total width: on request (customization)
Baffle height: 100-300 mm
Composition
100% PET (recycled material)
Thickness
24 mm
Finishing material
HAT
Weight
Baffles: 4kg/m2 (± 10%)
Strut profile: 0.62kg/m
Available colors
32 colors (see AchiSonic color in the images)
Sound absorption
ISO 354:2003 Acoustics — Measurement of sound absorption in a reverberation room
ISO 11654:1997 Acoustics — Sound absorbers for use in buildings — Assessment of sound absorption
ISO 20189:2018 Acoustics — Screens, furniture and loose objects intended for indoor use — Assessment of sound absorption and noise reduction of elements
based on laboratory measurements
ASTM C423-17 standard test method for sound absorption and sound absorption coefficients using the reverb chamber method
ASTM E795-16 Standard Practices for Assembling Test Samples During Sound Absorption Tests
Maintenance
For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.
If soiled by dust or fluff, use a feather duster or a regular feather duster
vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.
Recyclability
(60% certified post-consumer content)
Fire reduction class EU
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Green labels
Declare label, Cradle to Cradle, UL Environmental Product Declaration,
Member of the U.S. Green Building Council, Ecobau 1st Priority, Climmate-KIC,
VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled
Contents
